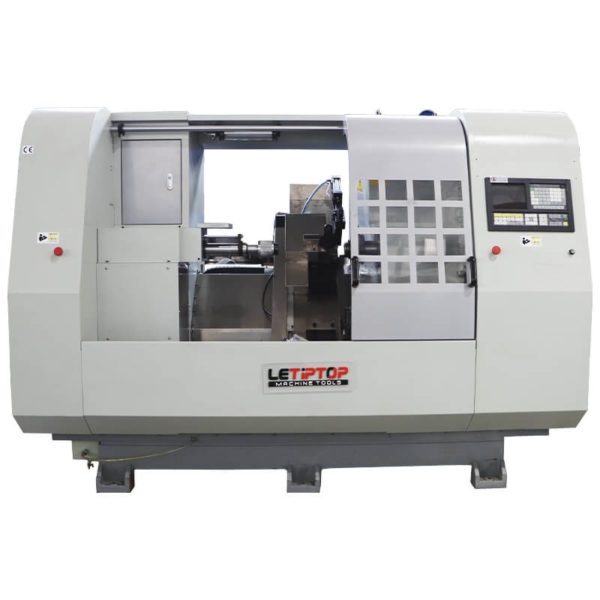

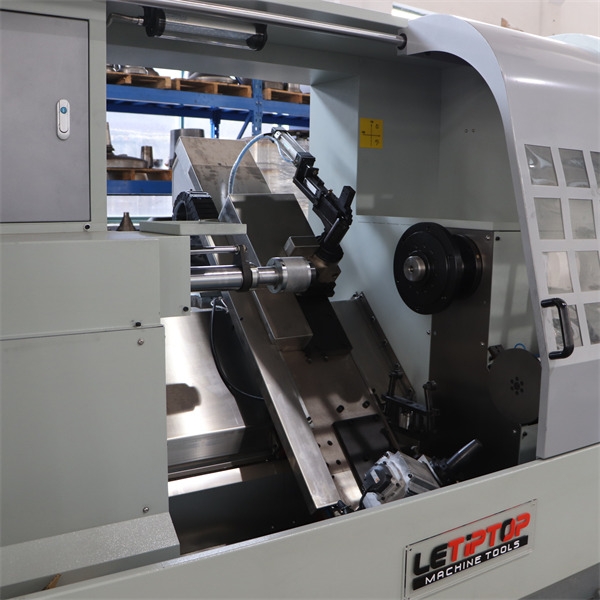

5 axis CNC Metal Spinning Machine

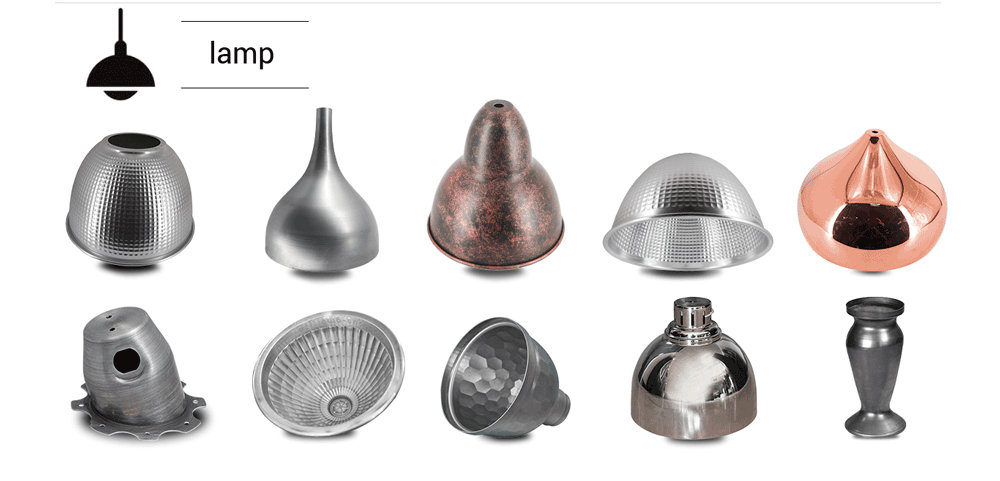

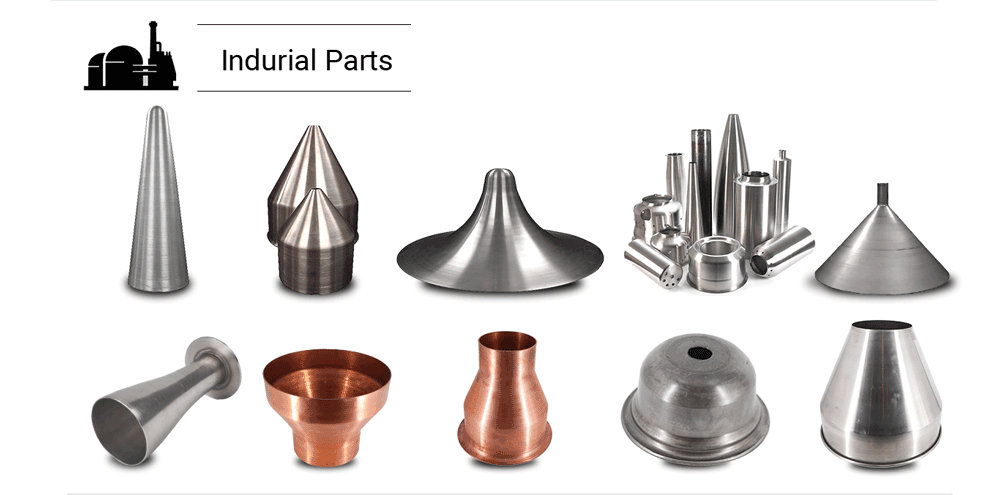

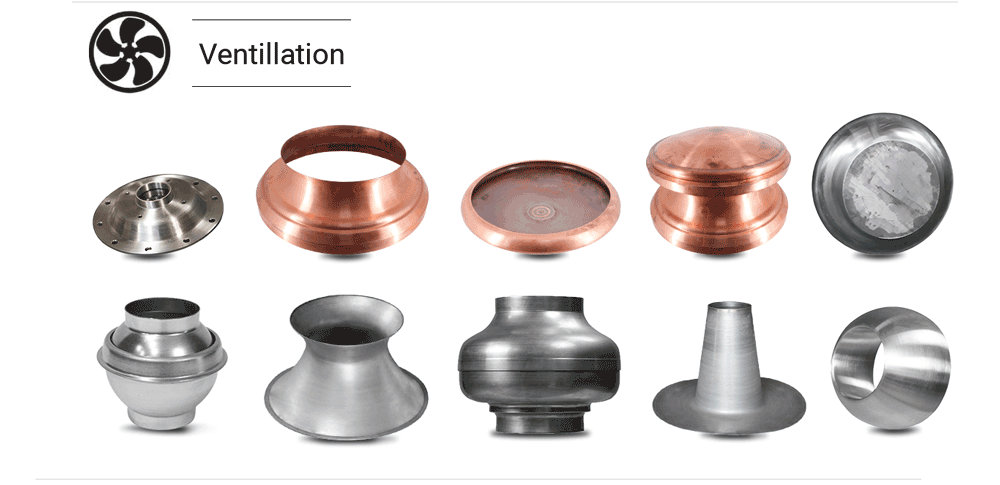

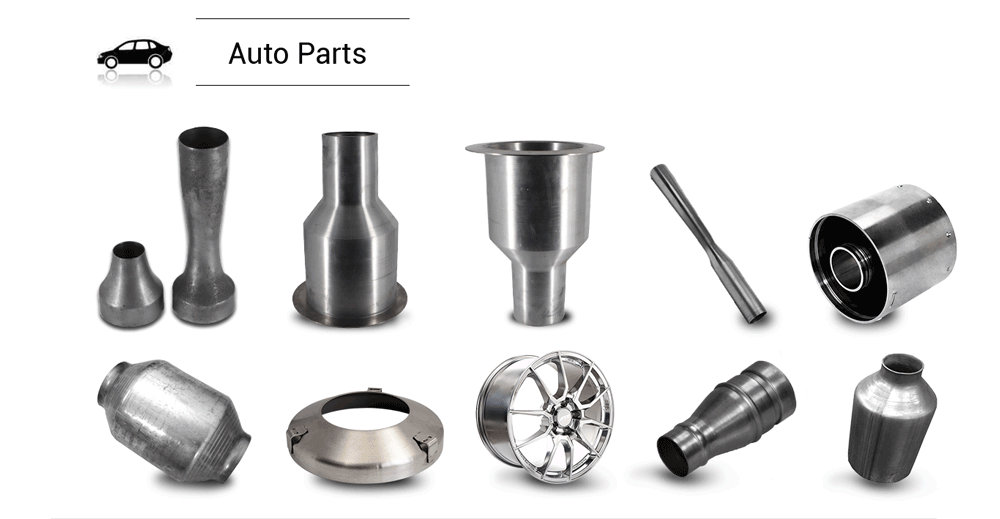

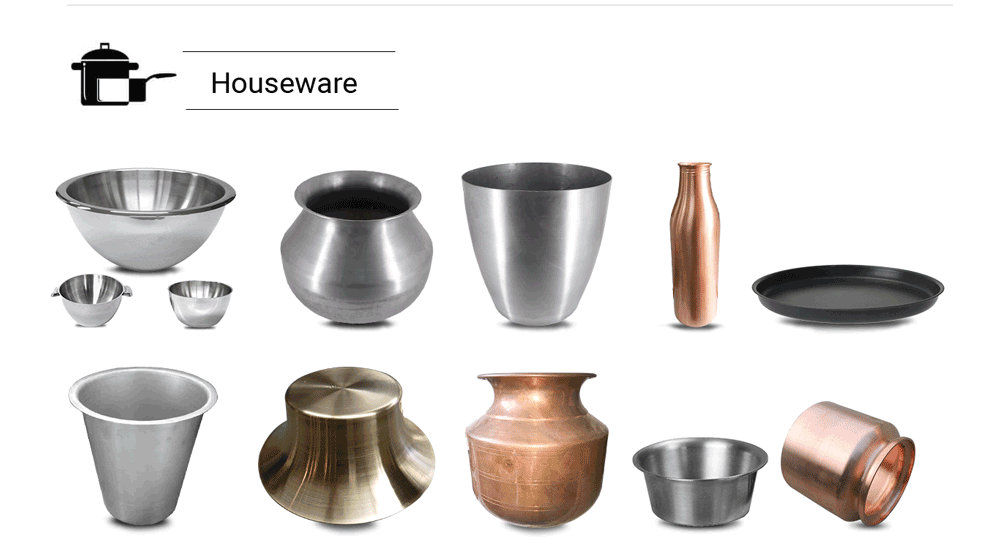

SP series CNC Spinning and Turning Machine is especially developed to spin kitchenwares, lamps, auto fittings, ventilations and art wares. It has high production efficiency and can complete horn, bucket, cone type, parabolic products. It can also process threading, trimming, flanging and rolling.

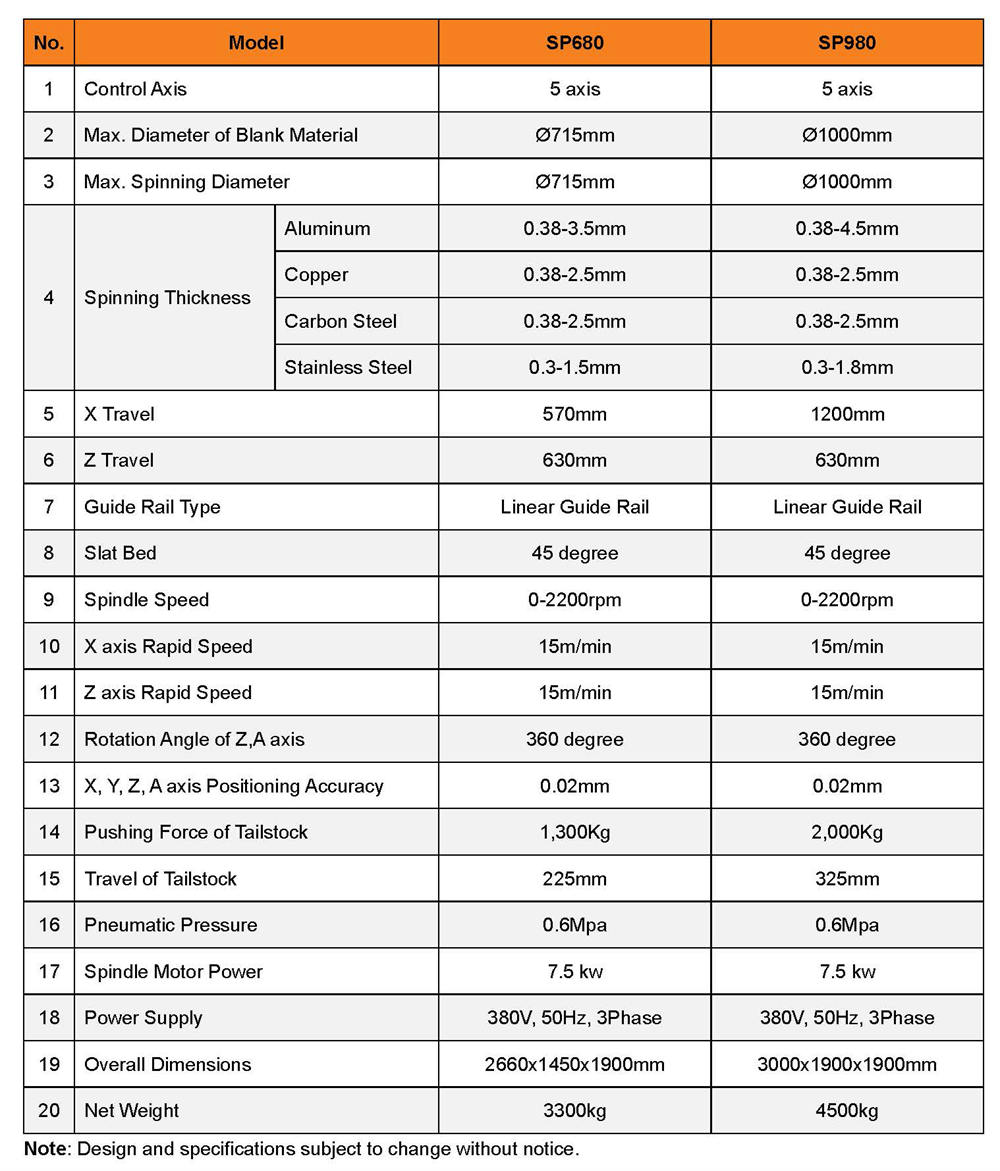

1. Spinning capacity of Aluminum 4.5mm, Copper and Carbon Steel 2.5mm, Stainless Steel 1.8mm
2. 715-1000mm blank sheet for spinning

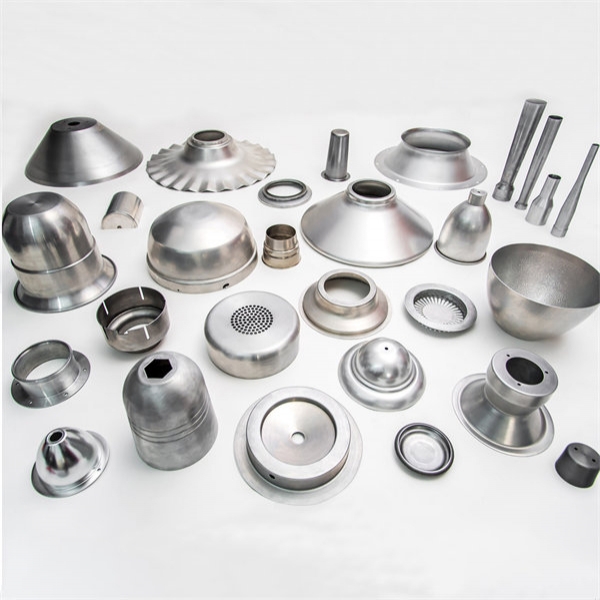

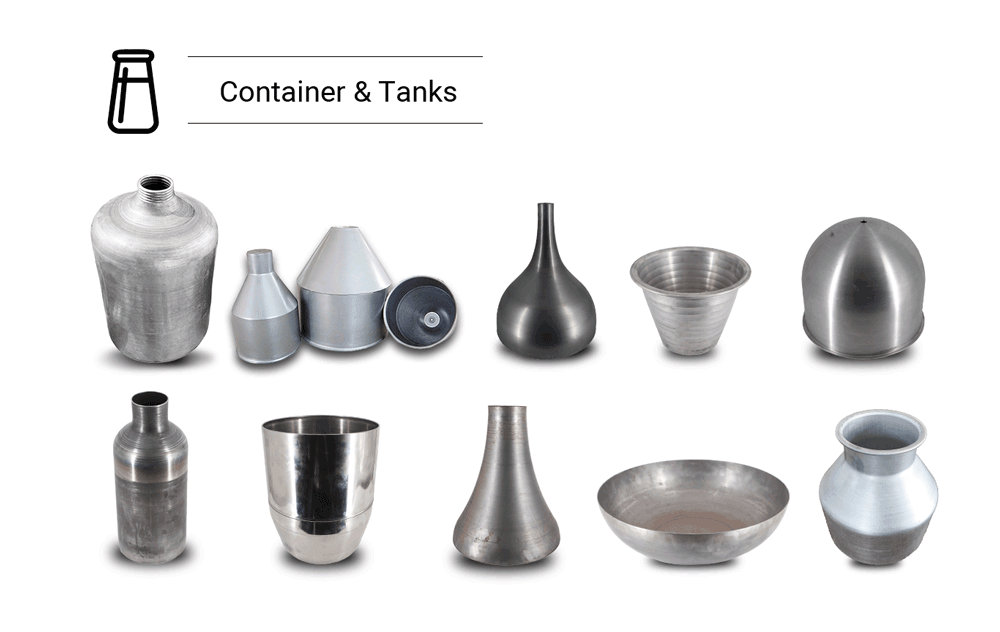

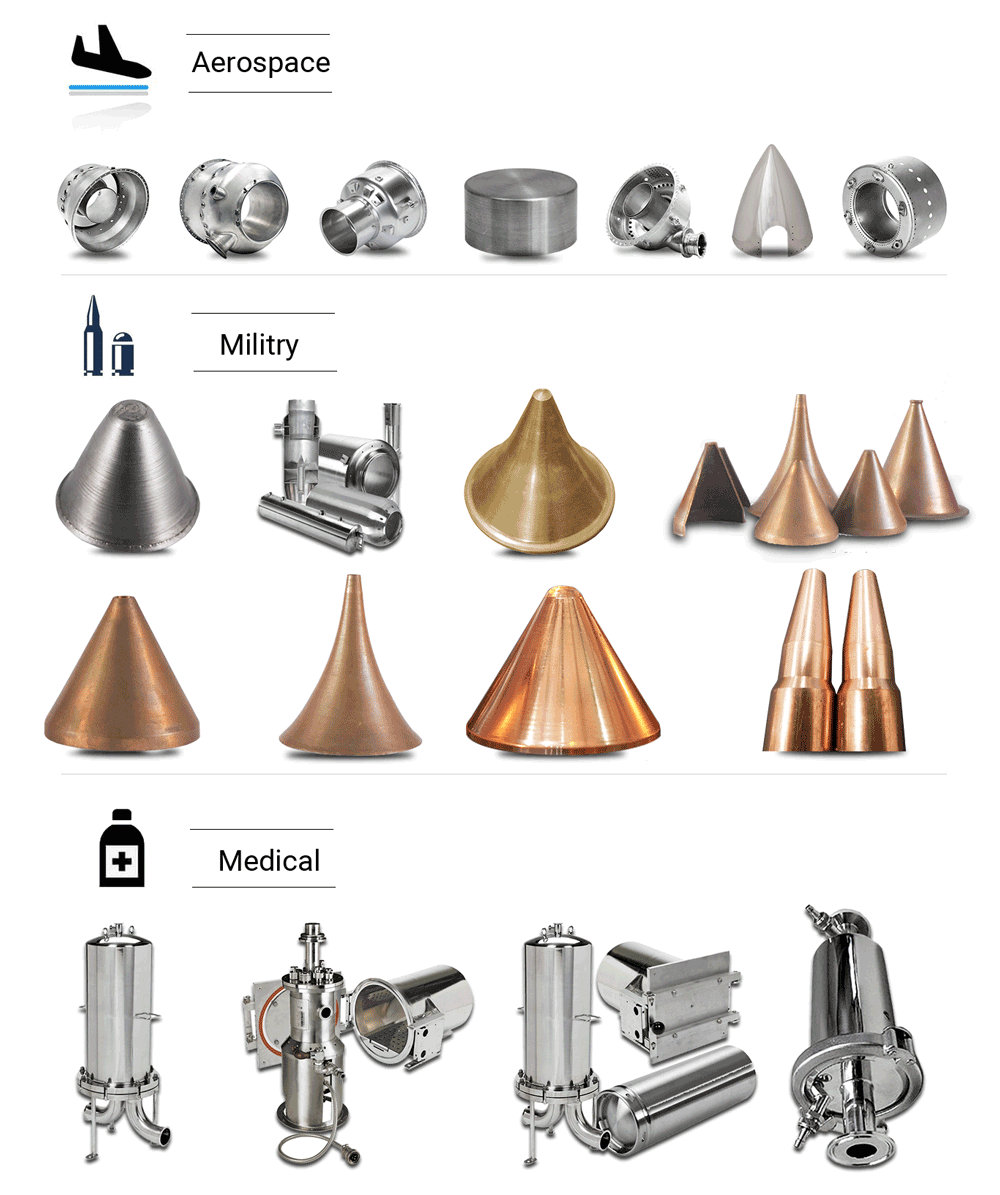

3. Spinning all kinds of spun parts in variety industries
4. The positioning accuracy is higher and stable.
5. Free training

    SP series CNC Spinning and Turning Machine is especially developed to spin kitchenwares, lamps, auto fittings, ventilations and art wares. It has many patents issued by the State Intellectual Property Office. This machine is practical, professional and strong. It has high production efficiency and can complete horn, bucket, cone type, parabolic products. It can also process threading, trimming, flanging and rolling at the same machine tool. The machine can spin many materials such as steel, alloy and copper etc. It has solved the traditional problems such as lack of skilled workers. With advanced digital control, it is easy to operate. The machine can improve the production efficiency, machining accuracy and saving the cost of human resources. It is the ideal processing machine for light, automobile, military, mechanic and other manufacturing industries.

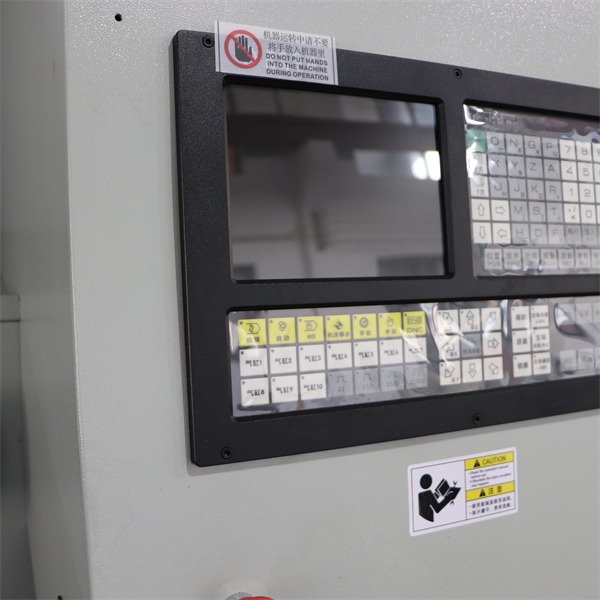

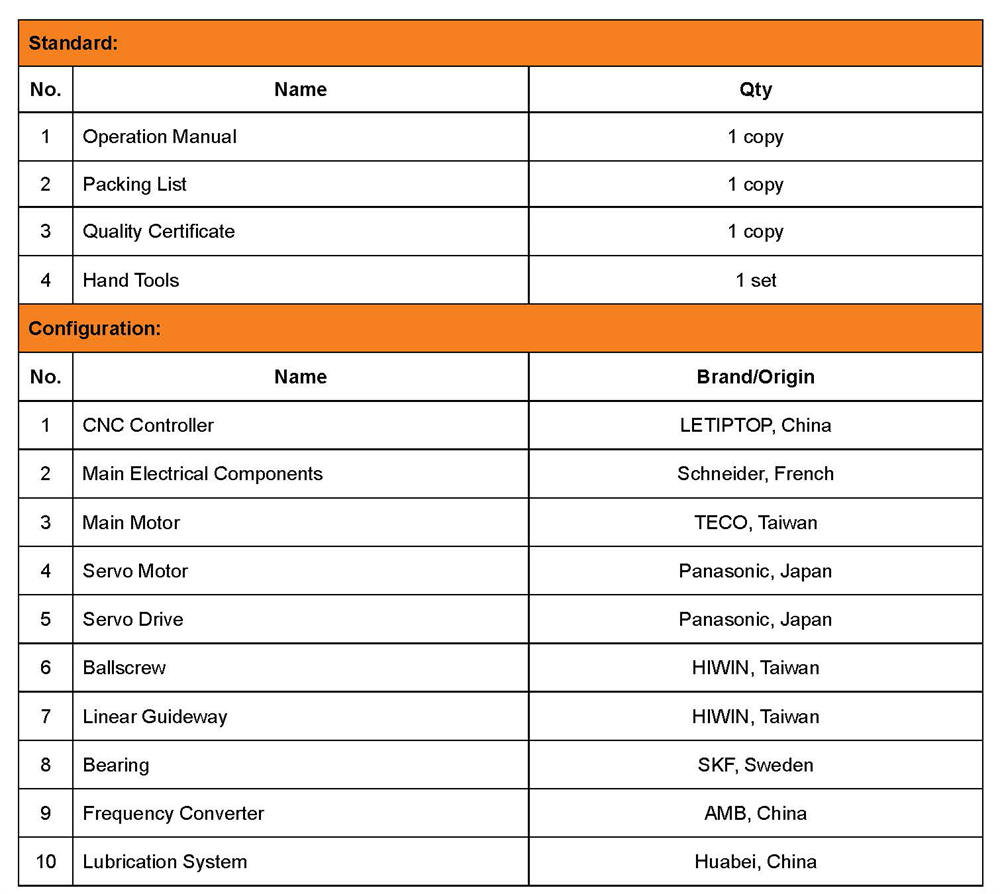

    ●LETIPTOP as standard CNC system which has USB port.
    ●Built-in programming. Do not need programming by computer or CAD drawing import.
    ●Meehanite cast iron after aging treatment, with high quality and less deformation.

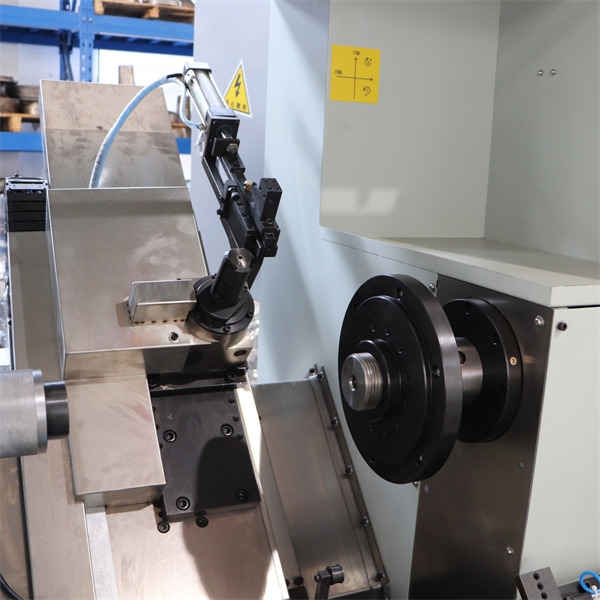

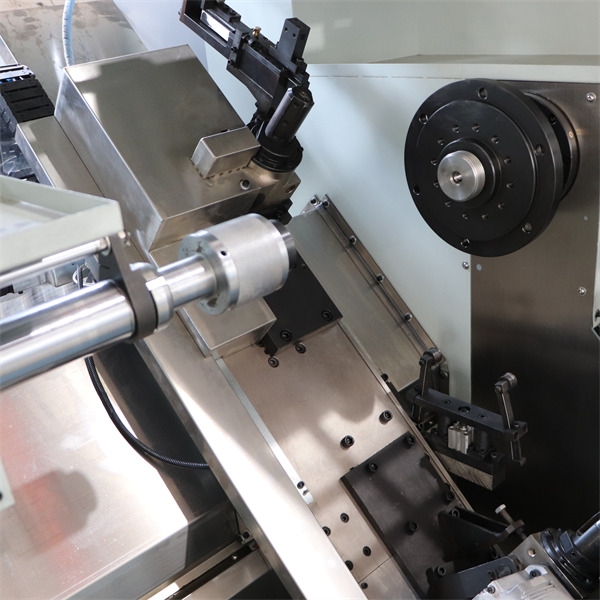

    ●A and Z axis can install roller and turning tools for spinning, trimming, flanging and rolling.
    ●Guide rails are ultrasonic frequency quenched and with hardness of HRC52.

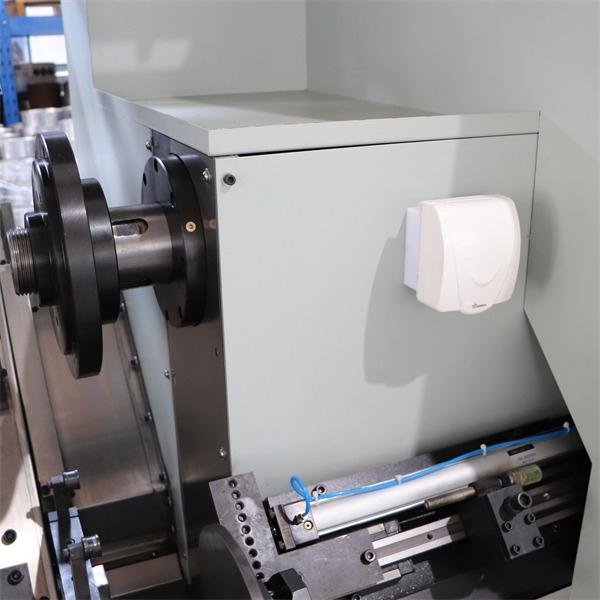

    ●Adopted independent spindle unit to ensure good movement precision, stiffness and stability.
    ●Precision ball screws ensure dynamic performance well and positioning accurately.

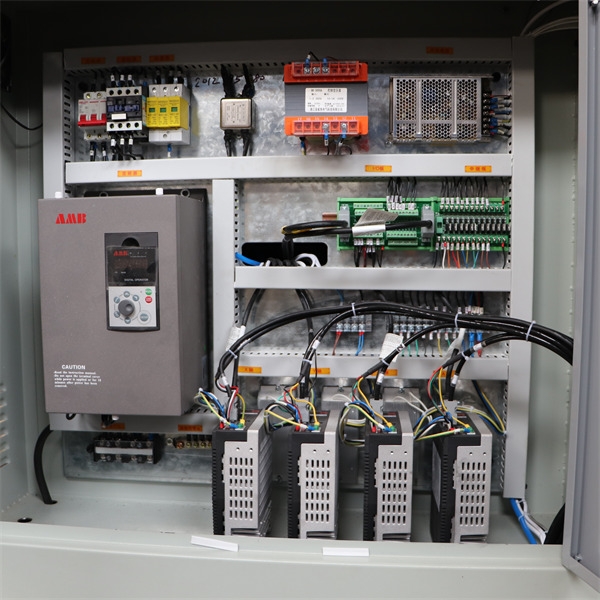

    ●Feeding axis are controlled by servo motors.
    ●Spindle motor is Servo controlled.

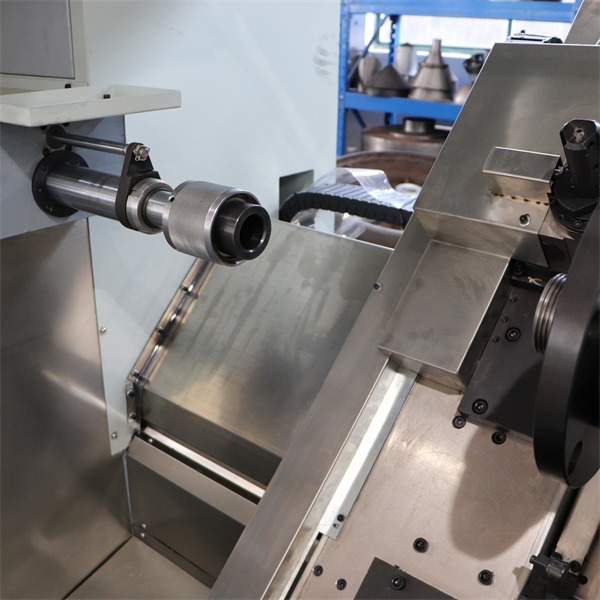

    ●Pneumatic tailstock.
    ●Integrated automatic lubrication system makes the maintenance more reliable.

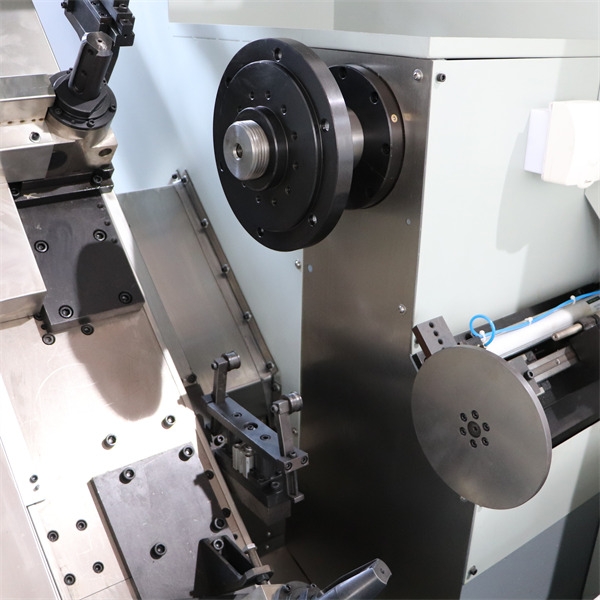

    ●The height of material support can adjust according to the blank plate diameter.

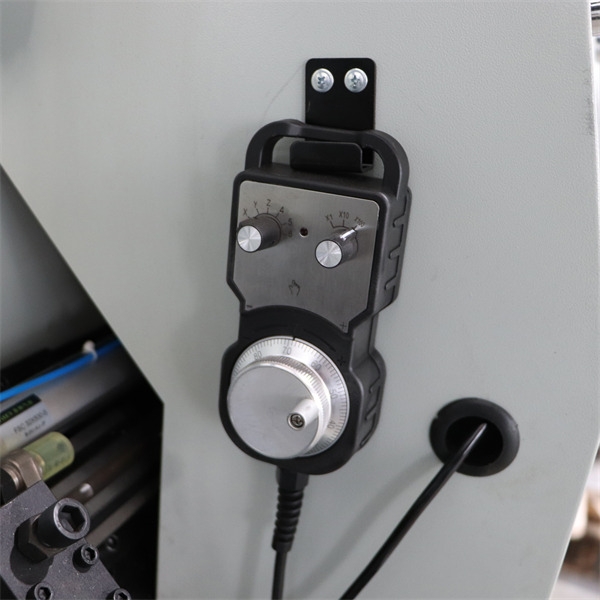

    ●Mobile manual pulse generator makes easy to operate.

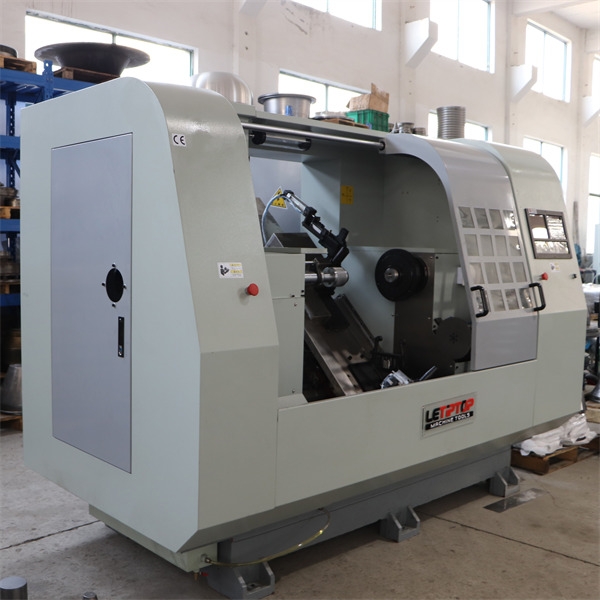

    ●Semi-enclosed shield.

    Give us a call at +86-18951166013 or email us by sales@tiptopmfg.com today for a formal quote on the 5-axis CNC Metal Spinning Machine and talk to TIPTOP expert.
